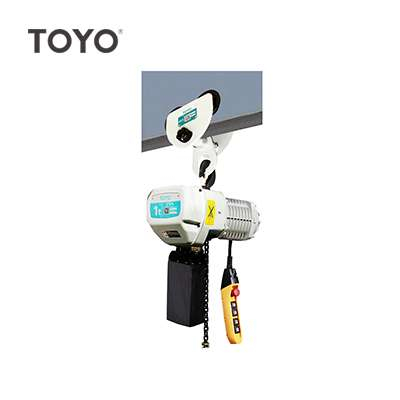

TY1 Electric Chain Hoist with Manual Trolley

TOYO TY1 electric chain hoist is a new type of small lifting equipment. It is an ideal equipment for lifting, transporting, loading and unloading goods and working. It is more flexible and convenient to use in a small space workplace, safe and convenient, light weight, small size, high working level, good safety performance, high reliability and low failure rate.
Availability:
Quantity:
  • Ty1
  • 2.7-7.2m/min
  • 1 Year
  • Motor, Gearbox
  • 62 kg
  • 24V/ 36V/48V
  • G80

FEATURES

• FEATURES

Capacity ranging from 0.5t-10t

Net weight: 55-272 kg

Standard Lifting Height 3 m

Overall punching all steel housing features light weight while sturdiness.

The mechanical part (gear, bearing, etc.) meets the international standard M5 grade, and the service life and wear resistance are stronger.

Standard handle feels comfortable and the buttons are simple and easy to operate. High quality lift switch, button controller control voltage with emergency stop button.



• ADVANTAGE

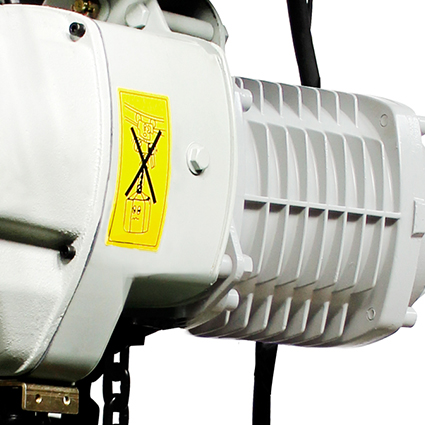

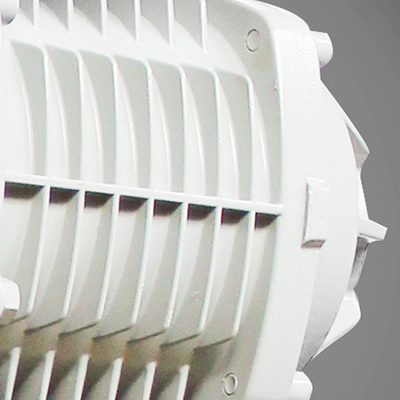

Cast aluminum housing, sturdy and impact resistant, special heat dissipation design, more heat dissipation and lighter weight. Protection level up to IP55, wider for applicable occasions

The mechanical part (gear bearing, etc.) meets the international standard M5 grade design, and the service life and wear resistance are stronger.

The standard handle feels comfortable, the button is simple, easy to operate, and the protection level can reach IP55, which can bring better protection effect and adapt to various environments.

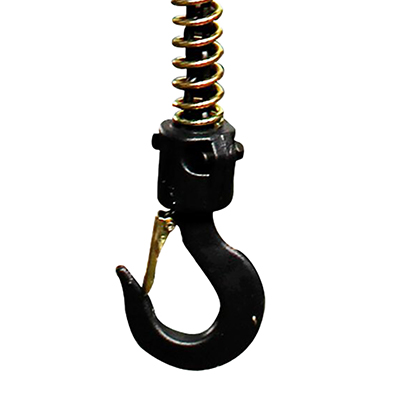

Professional technical measurement of the hook hanging loop, with a tongue that prevents lateral loss; not easy to break, strong weight bearing capacity

The chain reaches the international G80 grade, and can also be customized with a higher G100 grade and FEC chains. It adopts carbon black technology and has strong anti-corrosion effect and strong wear resistance.


TY1 Electric Chain Hoist with Electric Trolley
TY1 Electric Chain Hoist with Electric Trolley

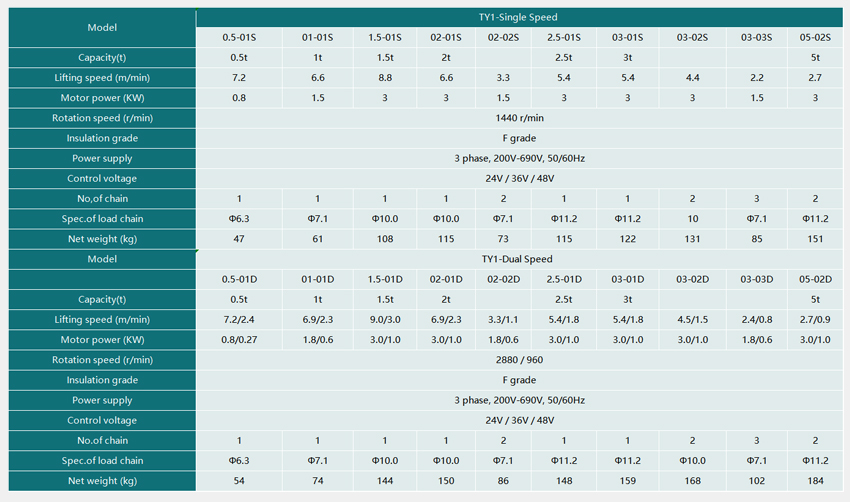

• PRODUCT PARAMETERS

TY1 Electric Chain Hoist with Manual Trolley
